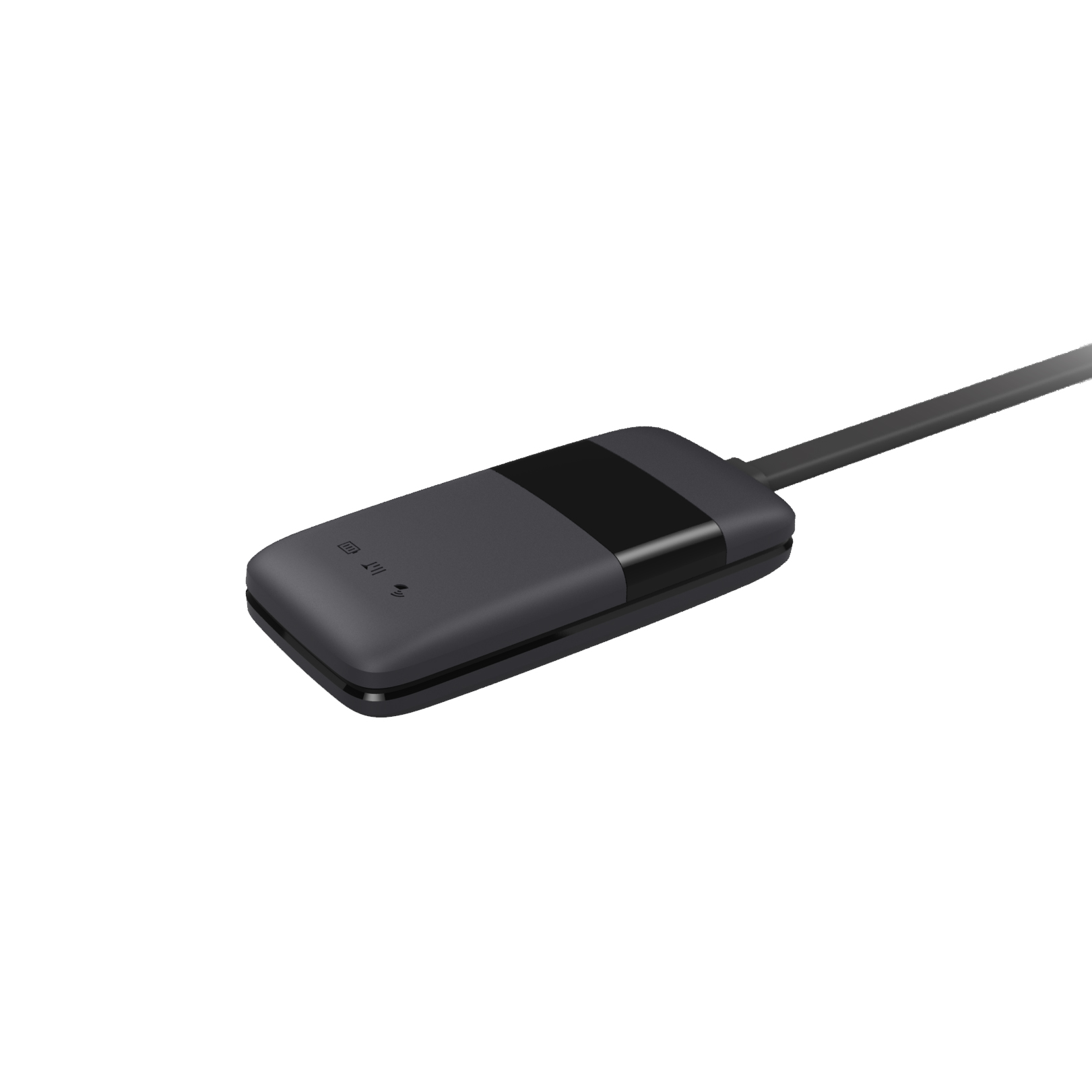

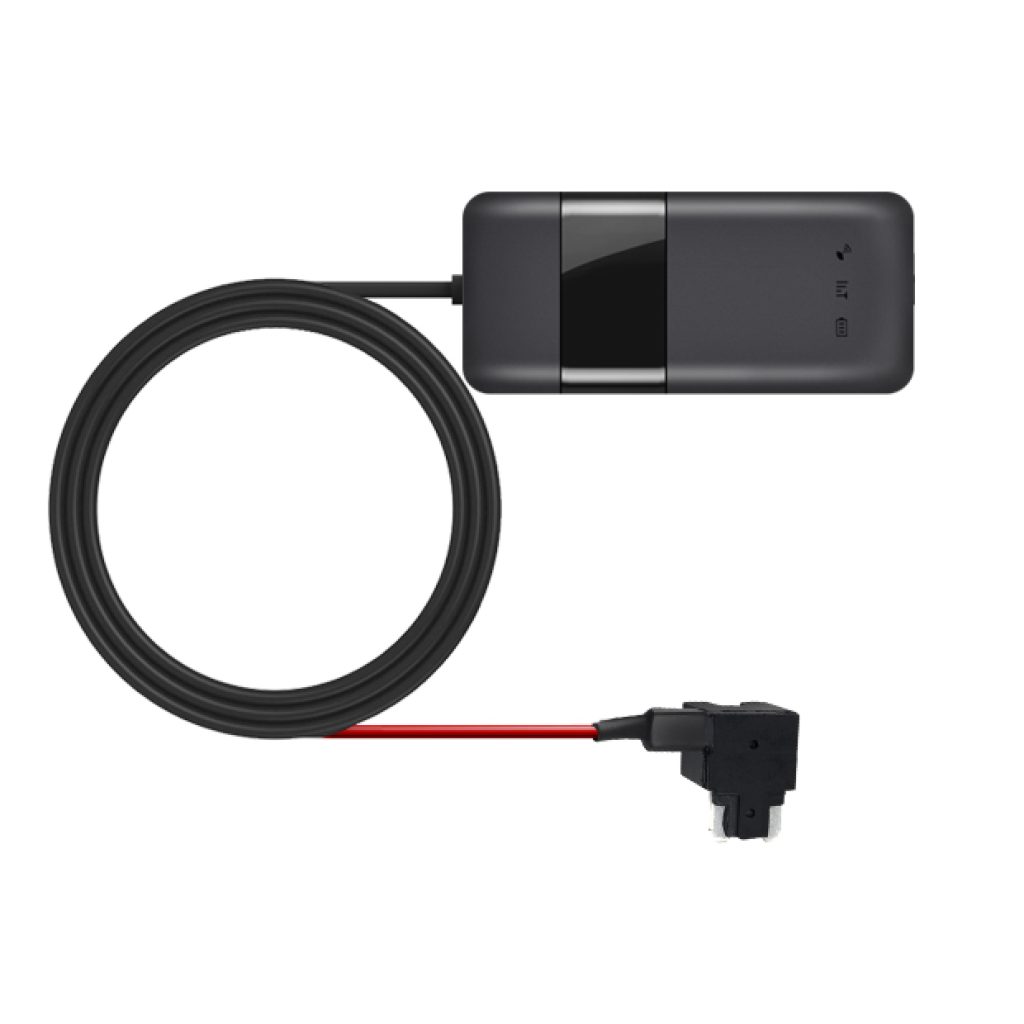

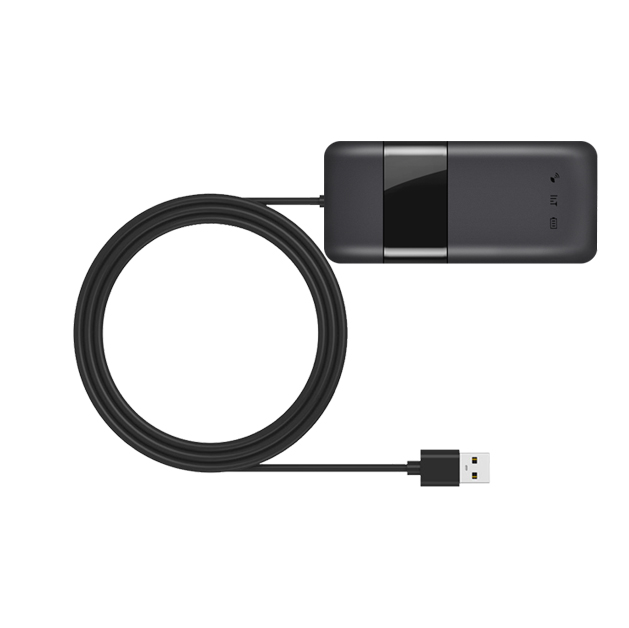

E02L Vehicle Tracking Locator Device

The E02L is a real-time vehicle car, motorcycle GPS tracker, smallest on the market tracking device for a variety of vehicle tracking applications

Description

U-BLOX 7 High-Performance Chip
Adopted U-Blox 7 high-performance chipset highly raised the accuracy of positioning

GPS+LBS+WIFI Positioning
GPS work as the main positioning, LBS/WIFI as a supplement when lack of GPS

Wide Input Voltage
Wide operating voltage range from 6-45V could meet all vehicles

Multiple Alarms
Shock alarm, move alarm, geofence alarm, over speeding alarm, power off alarm

Mini Size And Smooth Appearance
Easier to hide in different vehicles

ACC detection for Ignition Status
Be aware of the ignition status whenever you need

GSM Specifications
Communication System:	GSM
GSM Frequency:	850/900/1800/1900MHz
GPRS:	Class 12, TCP/IP
GPS Specifications
GPS Chip:	U-Blox 7 High Performance Chipset
Channel:	66
Location Accuracy:	<10meters
Tracking Sensitivity:	-163dBm
Acquisition Sensitivity:	-148dBm
GPS Location time:	Cold Start<29s(open sky)Hot Start<1s(open sky)
Product Specifications
GSM/GPS antenna:	Built-in quad band GSM antenna, GPS ceramic antenna
LED Indicator：	GSM-Red, GPRS-Green, GPS-Blue
Work Voltage:	DC5-30V
Work Current:	≤6mA
Standby Current:	≤3.5mA
Operating Temperature:	-20℃ ~+70 ℃
Built-in Battery:	30mAh/3.7V Industrial grade lithium polymer battery
Device Dimension:	35(L) x 70(W) x 13(H) mm
Device Weight:	20g
