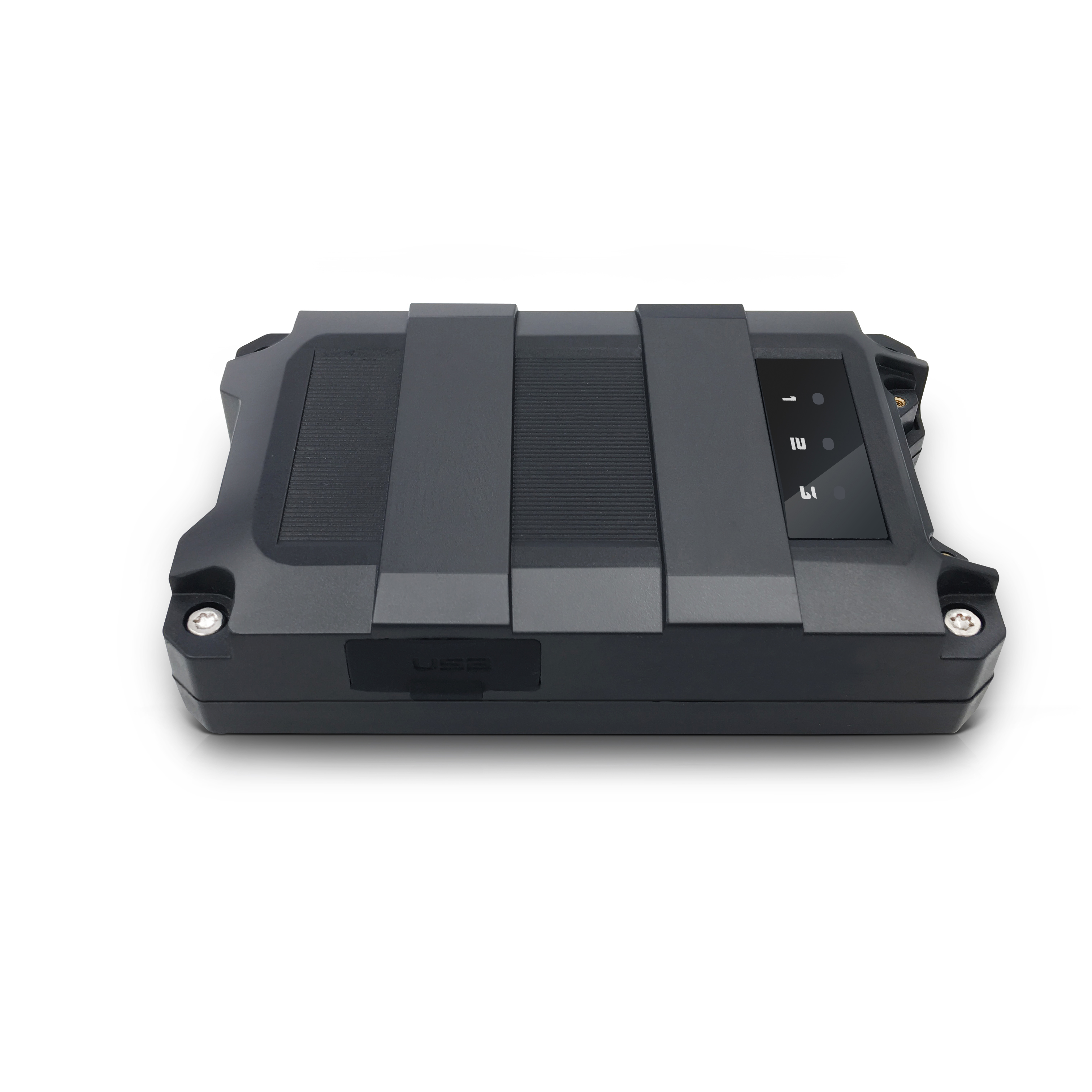

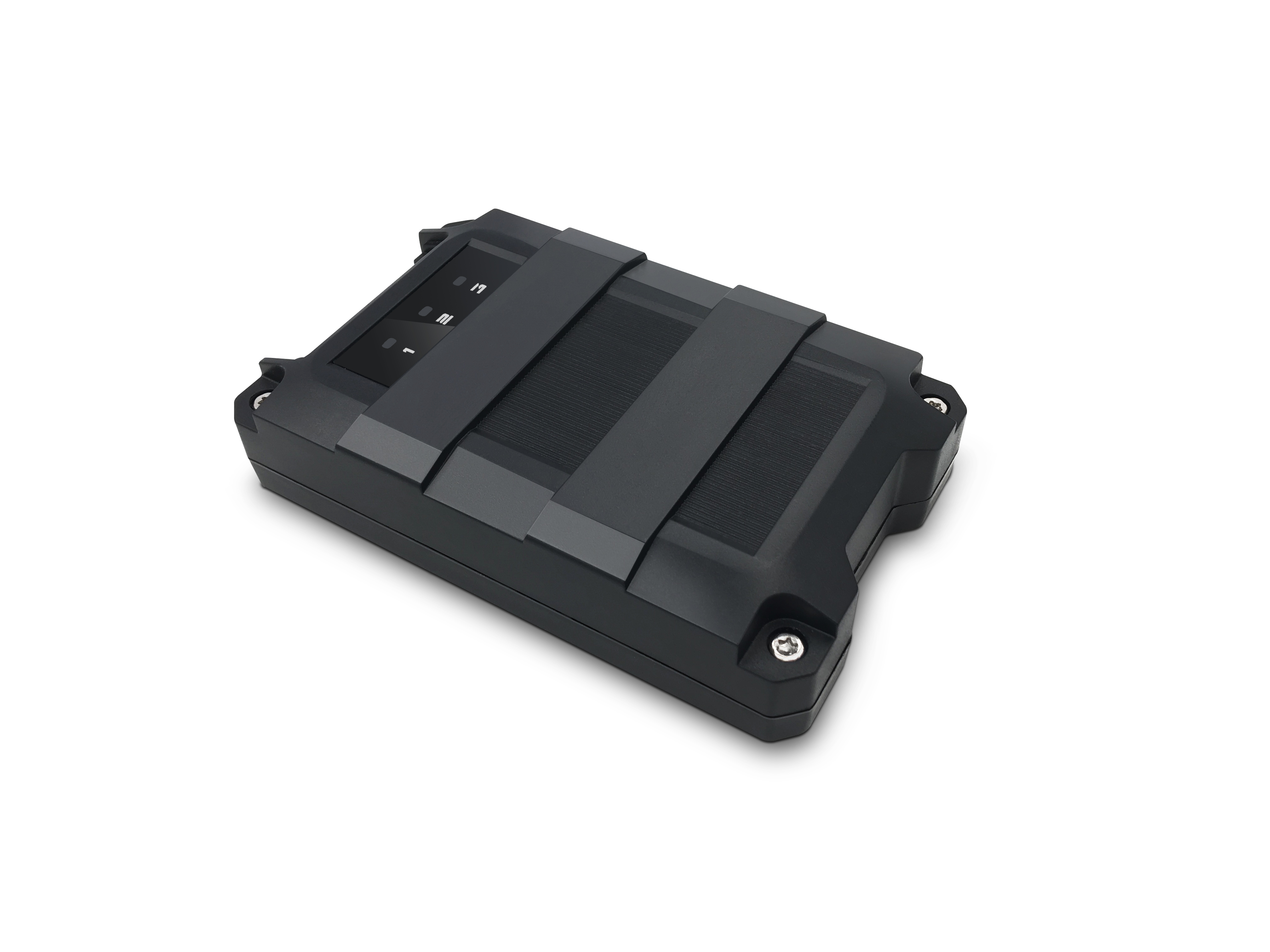

Rechargeable Ultra-standby Asset GPS Car Tracking Locator is extremely easy and flexible to install using robust magnetic design. IP64 protection allows it to operate even in extreme working environment. With 6000mAH built-in battery could last 3 years standby (1 position per day), the device is suitable for asset tracking, vehicle tracking, cargo tracking, race motorcycle tracking, etc.
Rechargable Battery
Built-in rechargeable battery no worry about battery life
Strong Magnetic Mounting
Stronger magnet allowing faster mounting on metal surface
IP67 Waterproof Design
Water resistance design ensure working in the harsh enviroment
Low Voltage Alarm
When the battery voltage drops below threshold an alert will sent to owner
Light Perception Alarm
The light sensor detects light changes the device will send out a light perception alarm
| Cellular Specifications | |
| Communication System: | GSM/WCDMA |
| GSM Frequency: | 850/900/1800/1900 MHZ |
| WCDMA Frequency: | 800/850/900/1900/2100MHz |
| GPRS: | Class 12, TCP/IP |
| GPS Specifications | |
| GPS Chip: | U-Blox 7 High Performance Chipset |
| Channel: | 66 |
| Location Accuracy: | <10meters |
| Tracking Sensitivity: | -163dBm |
| Acquisition Sensitivity: | -148dBm |
| GPS Location time: | Cold Start<29s(open sky)Hot Start<1s(open sky) |
| Product Specifications | |
| GSM/GPS antenna: | Built-in quad band GSM antenna, GPS ceramic antenna |
| LED Indicator： | GSM-Red, GPRS-Green, GPS-Blue |
| Work Voltage: | DC9-80V |
| Work Current: | ≤55mA |
| Standby Current: | ≤15μA |
| Operating Temperature: | -20℃ ~+70 ℃ |
| Built-in Battery: | 5000mAh Industrial grade lithium polymer battery(Rechargeable) |
| Tracking Mode: | >=3 years（Mode 1—one positioning/day ）
>=8-10days (Mode 2-real time positionging) |
| Device Dimension: | 60(W)*100(L)*24.5(H)mm |
| Device Weight: | 180g |
OBD II Car Vehicle GPS Real-time Tracker there’s no need to wire the device into your vehicle. Just plug it straight into your OBD plug and go. The OBD plug and play tracker has a wide range of industrial and commercial features including OBD interface, OBD diagnostics, Voltage detection ACC, can be tracked on the platform through computer & smartphone, this tracker is compatible with all types of vehicles.
Quad-band GSM/GPRS frequencies 850/900/1800/1900 MHz
Internal superior sensitivity U-blox 7 chipset
OBDII connectivity, easy to install
Internal 3-axis accelerometer for motion detection and driving behavior analysis
Build-in backup battery with long standby time
Internal GSM/GPS antenna
Wide operating voltage range 9V to 36V DC
Mini OBD Real Time Vehicle Tracking Device is the easiest GPS tracking solution to deploy. Simply plug the unit into the car’s OBD port and you’re ready to track. The OBD port provides uninterrupted power to your tracking device so you’ll never have to worry about losing sight of your vehicle due to a dead battery.
Quad-band GSM/GPRS frequencies 850/900/1800/1900 MHz Internal superior sensitivity U-blox 7 chipset OBDII connectivity, easy to install Internal 3-axis accelerometer for motion detection and driving behavior analysis Build-in backup battery with long standby time Internal GSM/GPS antenna Wide operating voltage range 9V to 36V DC
