VT66 Hidden Tracking Devices For Cars And Fleets

VT66 Mini Portable Real-Time Vehicle GPS Tracker for Vehicles and Fleets is a powerful and stable Vehicle Tracking Device. Widely use for Fleet Vehicles, vehicle location query / real-time monitoring/time tracking, all kinds of vehicle command and dispatch system.

Continuous accurate positioning
Real-time tracking, track playback, electric fence, data statistics
A variety of alarm, including power failure alarm, low power alarm, vibration alarm, displacement alarm, speedup alarm, fence alarm.

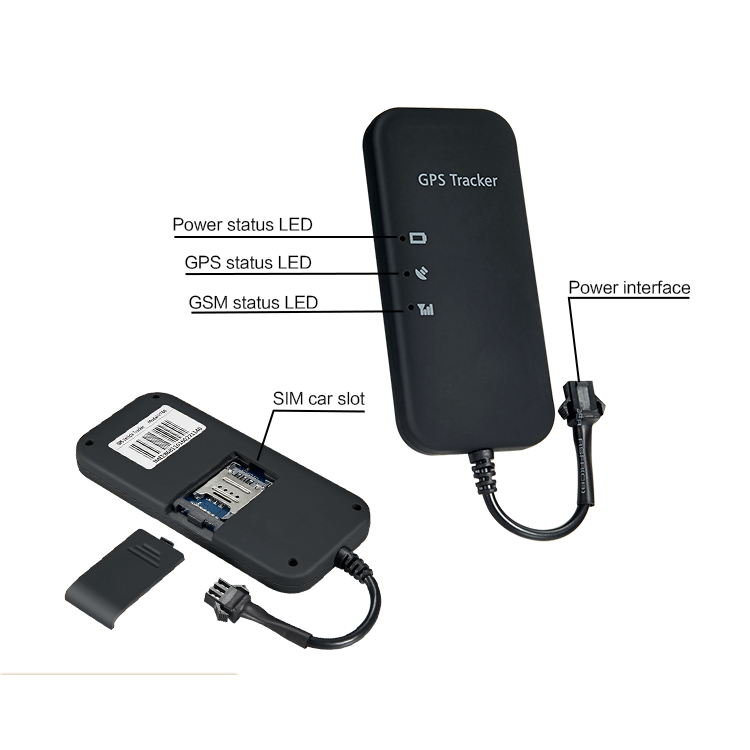

Description

U-BLOX 7 High-Performance Chip
Adopted U-Blox 7 high-performance chipset highly raised the accuracy of positioning

GPS+LBS+WIFI Positioning
GPS work as the main positioning, LBS/WIFI as a supplement when lack of GPS

Wide Input Voltage
Wide operating voltage range from 6-45V could meet all vehicles

Multiple Alarms
Shock alarm, move alarm, geofence alarm, over speeding alarm, power off alarm

Remote cut off petrol/electricity
Compel the vehicle to stop by breaking off the fuel/power connection

ACC detection for Ignition Status
Be aware of the ignition status whenever you need

Specifications

GSMSpecifications
Communication System:	GSM
GSM Frequency:	850/900/1800/1900MHz
GPRS:	Class 12, TCP/IP
GPSSpecifications
GPS Chip:	MTK3336
Channel:	66
Location Accuracy:	<10meters
Tracking Sensitivity:	-163dBm
Acquisition Sensitivity:	-148dBm
GPS Location time:	Cold Start<29s(open sky)Hot Start<1s(open sky)
Product Specifications
GSM/GPS antenna:	Built-in quad band GSM antenna, GPS ceramic antenna
LED Indicator：	GSM-Red, GPRS-Green, GPS-Blue
Work Voltage:	DC9-36V
Work Current:	6mA
Standby Current:	≤3.5mA
Operating Temperature:	-20℃ ~+70 ℃
Built-in Battery:	120mAh/3.7V Industrial grade lithium polymer battery
Device Dimension:	100(W)45(L)12.5(H)mm
Device Weight:	120g
